Understanding the various parts of a WC (water closet) is essential for anyone looking to install, repair, or maintain a toilet. A WC is a critical component of any plumbing system, and knowing its parts can help ensure it functions efficiently and effectively. This guide will walk you through the key components of a WC, their functions, and some basic maintenance tips.
Understanding the Basic Parts of a WC
A WC, commonly known as a toilet, consists of several key parts that work together to ensure proper flushing and waste removal. Here are the primary components:
- Tank: The tank is the upper part of the toilet where water is stored until it is needed for flushing.
- Bowl: The bowl is the lower part of the toilet where waste is collected and flushed away.
- Flush Valve: This valve controls the release of water from the tank into the bowl during a flush.
- Fill Valve: The fill valve refills the tank with water after a flush.
- Flush Handle: This is the lever or button that initiates the flushing process.
- Trapway: The trapway is the curved pipe at the bottom of the bowl that prevents sewer gases from entering the bathroom.
- Siphon Jet: This is a small hole at the bottom of the bowl that helps create a siphon effect during flushing.
- Overflow Tube: This tube prevents the tank from overflowing by diverting excess water into the bowl.
Detailed Explanation of Each Part
Tank
The tank is a crucial part of a WC, as it holds the water used for flushing. It is typically made of porcelain or ceramic and is connected to the bowl via the flush valve. The tank also houses the fill valve, flush handle, and overflow tube. Understanding how these components interact is key to maintaining a functional WC.
Bowl
The bowl is where waste is collected before being flushed away. It is designed with a water trap that holds a small amount of water to seal off the sewer line and prevent odors from escaping. The bowl's shape and size can vary, but most modern toilets have an elongated or round bowl design.

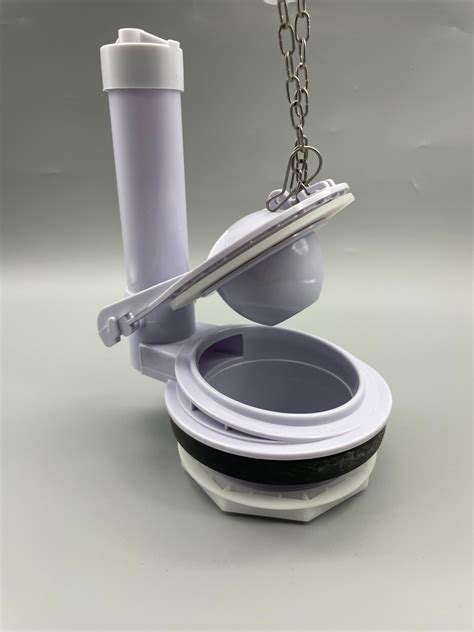

Flush Valve
The flush valve is located at the bottom of the tank and controls the release of water into the bowl. When the flush handle is pressed, it lifts a flapper or valve seal, allowing water to rush into the bowl. This sudden influx of water creates a siphon effect that pulls waste through the trapway and into the sewer line.

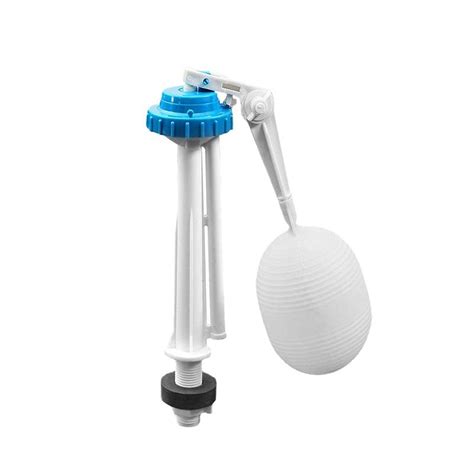

Fill Valve
The fill valve is responsible for refilling the tank with water after a flush. It is connected to the water supply line and activates when the water level in the tank drops. The fill valve continues to supply water until the tank is full, at which point it shuts off automatically.
Flush Handle
The flush handle is the user interface for initiating a flush. It is connected to the flush valve via a chain or rod. When the handle is pressed, it lifts the flapper, allowing water to flow from the tank into the bowl. Modern toilets often use a button instead of a handle for a more streamlined look.
Trapway
The trapway is the curved pipe at the bottom of the bowl that connects to the sewer line. Its primary function is to create a water seal that prevents sewer gases from entering the bathroom. The trapway's design also helps to create the siphon effect during flushing, ensuring that waste is efficiently removed.
Siphon Jet
The siphon jet is a small hole located at the bottom of the bowl, near the trapway. When water is released from the tank, it flows through the siphon jet, creating a powerful stream that helps to pull waste through the trapway. This jet is essential for maintaining the siphon effect and ensuring a thorough flush.
Overflow Tube
The overflow tube is a safety feature that prevents the tank from overflowing. It is connected to the fill valve and diverts excess water into the bowl if the water level in the tank rises too high. This ensures that water does not spill onto the floor, causing potential damage.
Maintenance Tips for WC Parts
Regular maintenance of your WC can help prevent issues and extend its lifespan. Here are some tips for maintaining the key parts of a WC:
- Check for Leaks: Regularly inspect the tank and bowl for leaks. A leaking toilet can waste a significant amount of water and increase your utility bills.
- Clean the Bowl: Use a toilet brush and cleaner to scrub the bowl regularly. This helps to remove stains and prevent the buildup of bacteria.
- Inspect the Flush Valve: Ensure that the flush valve is functioning properly. If the flapper is worn or damaged, it may need to be replaced.
- Check the Fill Valve: Make sure the fill valve is refilling the tank correctly. If it is not shutting off properly, it may need to be adjusted or replaced.
- Clean the Siphon Jet: Use a small brush or wire to clean the siphon jet periodically. This helps to maintain the siphon effect and ensure a thorough flush.
- Test the Overflow Tube: Ensure that the overflow tube is functioning correctly. If it is clogged or damaged, it may need to be cleaned or replaced.
🛠️ Note: Always turn off the water supply before performing any maintenance on your WC. This can help prevent water damage and make the repair process easier.
Common Issues with WC Parts
Even with regular maintenance, issues can still arise with the various parts of a WC. Here are some common problems and their potential causes:
- Weak Flush: A weak flush can be caused by a clogged siphon jet, a malfunctioning flush valve, or low water pressure.
- Running Toilet: A running toilet is often due to a faulty flapper or fill valve. It can waste a significant amount of water if not addressed.
- Leaking Tank: Leaks in the tank can be caused by a cracked tank, a loose or damaged fill valve, or a faulty flush valve.
- Clogged Bowl: A clogged bowl can be caused by excessive toilet paper, foreign objects, or a blockage in the trapway.
- Overflowing Tank: An overflowing tank is usually due to a malfunctioning fill valve or a clogged overflow tube.
🛠️ Note: If you encounter any of these issues, it is best to address them promptly to prevent further damage and ensure the proper functioning of your WC.
Troubleshooting WC Issues
When troubleshooting issues with your WC, it is essential to identify the root cause of the problem. Here are some steps to help you diagnose and fix common WC issues:
- Check for Leaks: Inspect the tank and bowl for any signs of leaks. Use food coloring in the tank to check for leaks in the flush valve.
- Inspect the Flush Valve: Ensure that the flapper is sealing properly and that the flush valve is functioning correctly.
- Test the Fill Valve: Make sure the fill valve is refilling the tank to the correct water level and shutting off properly.
- Clean the Siphon Jet: Use a small brush or wire to clean the siphon jet and ensure it is not clogged.
- Check the Overflow Tube: Ensure that the overflow tube is not clogged and is functioning correctly.
- Inspect the Trapway: Use a plunger or auger to clear any blockages in the trapway.
🛠️ Note: If you are unsure about any of these steps or if the issue persists, it is best to consult a professional plumber.
Replacing WC Parts
Over time, some parts of a WC may need to be replaced due to wear and tear or damage. Here are some common parts that may require replacement:
- Flapper: The flapper is a rubber seal that controls the flow of water from the tank to the bowl. It can become worn or damaged over time and may need to be replaced.
- Fill Valve: The fill valve can become clogged or malfunction, causing the tank to overflow or not refill properly. Replacing the fill valve can resolve these issues.
- Flush Valve: The flush valve can become damaged or worn, leading to a weak flush or leaks. Replacing the flush valve can restore proper flushing function.
- Overflow Tube: The overflow tube can become clogged or damaged, preventing it from diverting excess water into the bowl. Replacing the overflow tube can ensure proper tank operation.
🛠️ Note: When replacing WC parts, make sure to turn off the water supply and follow the manufacturer's instructions for proper installation.
Conclusion
Understanding the various parts of a WC is crucial for maintaining a functional and efficient toilet. From the tank and bowl to the flush valve and fill valve, each component plays a vital role in the flushing process. Regular maintenance and prompt troubleshooting can help prevent issues and extend the lifespan of your WC. By familiarizing yourself with the key parts and their functions, you can ensure that your toilet operates smoothly and effectively for years to come.
