Understanding the concept of the moment of inertia is crucial in various fields of engineering and physics, particularly when dealing with the rotational dynamics of objects. The moment of inertia rectangle is a specific case that often arises in structural engineering and mechanical design. This post will delve into the fundamentals of the moment of inertia, focusing on how it applies to rectangles, and provide practical examples and calculations to illustrate these concepts.
Understanding Moment of Inertia
The moment of inertia, often denoted by the symbol I, is a measure of an object’s resistance to changes in its rotation. It is analogous to mass in linear motion, where mass resists changes in linear velocity. In rotational motion, the moment of inertia resists changes in angular velocity. The formula for the moment of inertia depends on the shape and distribution of mass within the object.
The Moment of Inertia for a Rectangle

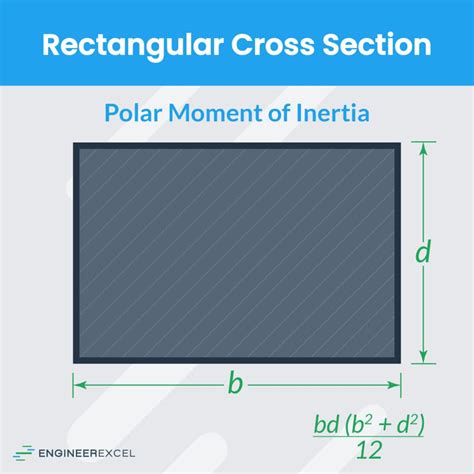

For a rectangle, the moment of inertia can be calculated about different axes. The most common axes considered are the centroidal axes (axes passing through the center of mass) and the axes passing through the edges. The formulas for the moment of inertia of a rectangle about these axes are as follows:
For a rectangle with width b and height h:
- About the centroidal axis (parallel to the width): Ixx = bh3/12
- About the centroidal axis (parallel to the height): Iyy = hb3/12
- About an axis through one edge (parallel to the width): Ixx = bh3/3
- About an axis through one edge (parallel to the height): Iyy = hb3/3
These formulas are derived from the integral calculus and are fundamental in structural analysis and design.
Practical Applications of Moment of Inertia Rectangle
The moment of inertia of a rectangle is widely used in various engineering applications. Some of the key areas include:
- Structural Engineering: In the design of beams and columns, the moment of inertia is crucial for determining the deflection and stress under various loads.
- Mechanical Engineering: In the design of rotating machinery, the moment of inertia helps in calculating the torque required to accelerate or decelerate the system.
- Civil Engineering: In the design of bridges and buildings, the moment of inertia is used to ensure structural stability and safety.

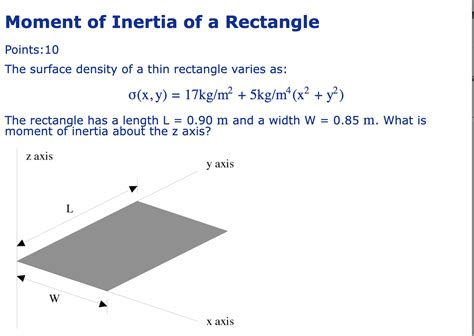

Calculating the Moment of Inertia for a Rectangle
Let’s go through an example to calculate the moment of inertia for a rectangle. Consider a rectangle with a width of 5 meters and a height of 3 meters. We will calculate the moment of inertia about the centroidal axes.
Given:
- Width (b) = 5 m
- Height (h) = 3 m
Using the formula for the moment of inertia about the centroidal axis parallel to the width:
Ixx = bh3/12
Substitute the given values:
Ixx = (5 m) * (3 m)3 / 12
Ixx = (5 m) * (27 m3) / 12
Ixx = 135 m4 / 12
Ixx = 11.25 m4
Similarly, for the moment of inertia about the centroidal axis parallel to the height:
Iyy = hb3/12
Substitute the given values:
Iyy = (3 m) * (5 m)3 / 12
Iyy = (3 m) * (125 m3) / 12
Iyy = 375 m4 / 12
Iyy = 31.25 m4
Thus, the moment of inertia for the rectangle about the centroidal axes are 11.25 m4 and 31.25 m4 respectively.
📝 Note: These calculations assume the rectangle is homogeneous and the material properties are uniform throughout.
Comparing Moment of Inertia for Different Shapes
To better understand the concept, let’s compare the moment of inertia of a rectangle with that of other common shapes. The following table provides the moment of inertia formulas for various shapes about their centroidal axes:
| Shape | Moment of Inertia Formula |
|---|---|
| Rectangle | Ixx = bh3/12, Iyy = hb3/12 |
| Circle | I = πr4/4 |
| Triangle | Ixx = bh3/36, Iyy = hb3/36 |
| Ellipse | Ixx = πab3/4, Iyy = πba3/4 |
These formulas highlight how the moment of inertia varies with the shape and dimensions of the object. Understanding these differences is essential for selecting the appropriate shape for a given application.
Advanced Topics in Moment of Inertia

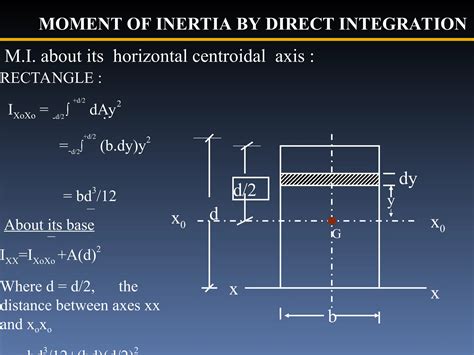

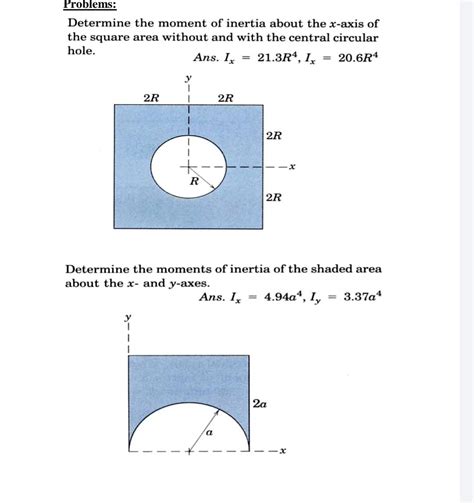

For more complex shapes or composite structures, the moment of inertia can be calculated using the parallel axis theorem or by integrating the moment of inertia of smaller sections. The parallel axis theorem states that the moment of inertia about any axis is equal to the moment of inertia about a parallel axis through the centroid plus the product of the area and the square of the distance between the two axes.
The formula for the parallel axis theorem is:
Inew = Icentroid + Ad2
Where:
- Inew is the moment of inertia about the new axis.
- Icentroid is the moment of inertia about the centroidal axis.
- A is the area of the shape.
- d is the distance between the new axis and the centroidal axis.
This theorem is particularly useful when dealing with composite shapes or when the axis of rotation does not pass through the centroid.
📝 Note: The parallel axis theorem is also known as the Steiner's theorem.
Conclusion
The moment of inertia rectangle is a fundamental concept in engineering and physics, essential for understanding the rotational dynamics of objects. By calculating the moment of inertia, engineers can design structures and machinery that are stable, efficient, and safe. Whether dealing with simple shapes like rectangles or more complex composite structures, the principles of moment of inertia provide a robust framework for analysis and design. Understanding these concepts is crucial for anyone involved in fields that require a deep understanding of rotational motion and structural integrity.
